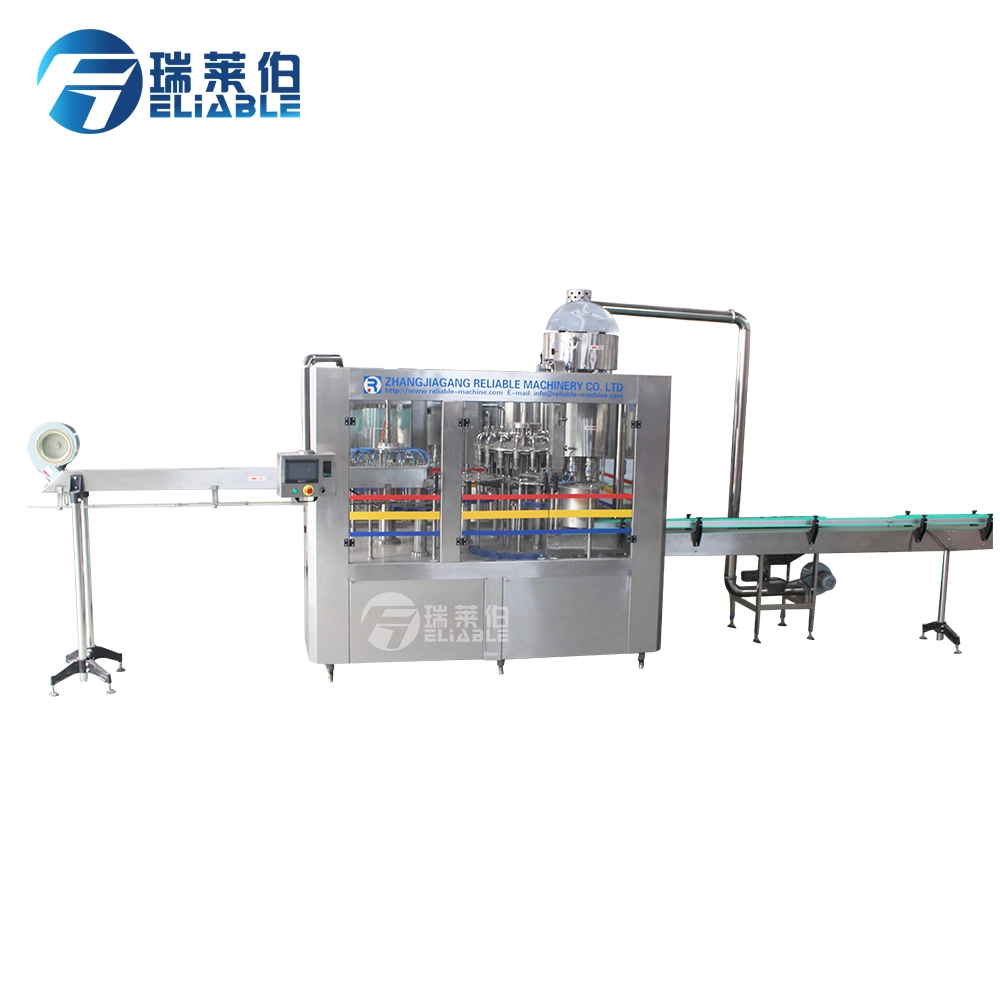

Automatic Fruit Juice Bottle Filling And Capping Machine

Main features
1.Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isnt changed because of adopting hanging clamping bottleneck fashion

2.Adopting clamping bottleneck fashion to wash bottle mouth and avoid touching screw mouth, adopting clamping bottleneck fashion in the whole conveying process. When bottle type changes, you need to adjust the board related with bottle diameter.

3.Using measuring cup to measure in filling juice sacs which ensure that juice sacs is even.

4.Screw capper adopts French advanced technology which can screw cap promptly when clamping bottle. Cap sorter select low position to install, carrying cap horizontally

5.The PLC and tranducer are chosen from international famous brand, such as OMRON, MITSUBISHI and so on.


Detailed Parts
Automatic Fruit Juice Bottle Filling and Capping Machine

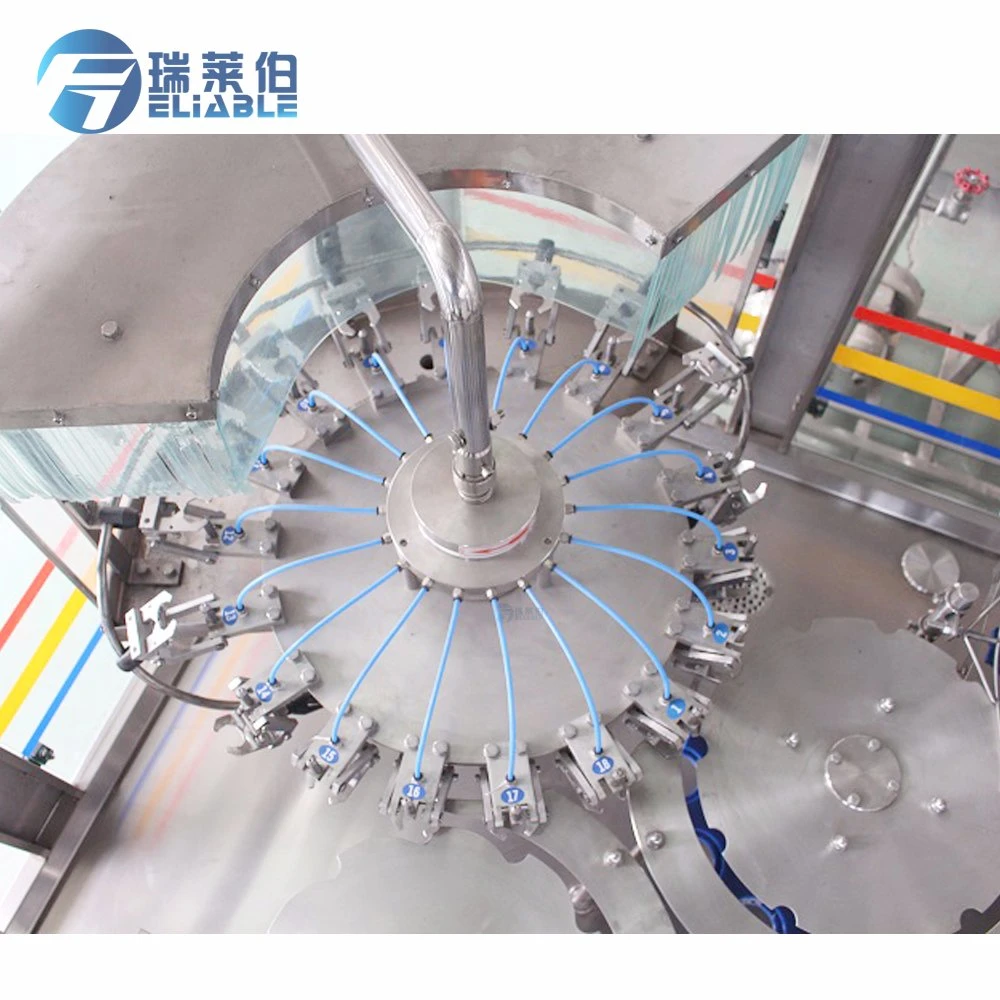

Juice Rinser
-Rotative rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Automatic Fruit Juice Bottle Filling and Capping Machine

Juice Filler
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Automatic Fruit Juice Bottle Filling and Capping Machine

Juice Capper
-Rotative capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
Automatic Fruit Juice Bottle Filling and Capping Machine
